Class 66 (Phase 1/2) Loksound DCC Decoder

SKU ACC2459
Original price $167.00 - Original price $167.00
Original price
$167.00
$167.00 - $167.00
Current price $167.00
Availability:
in stock, ready to be shipped

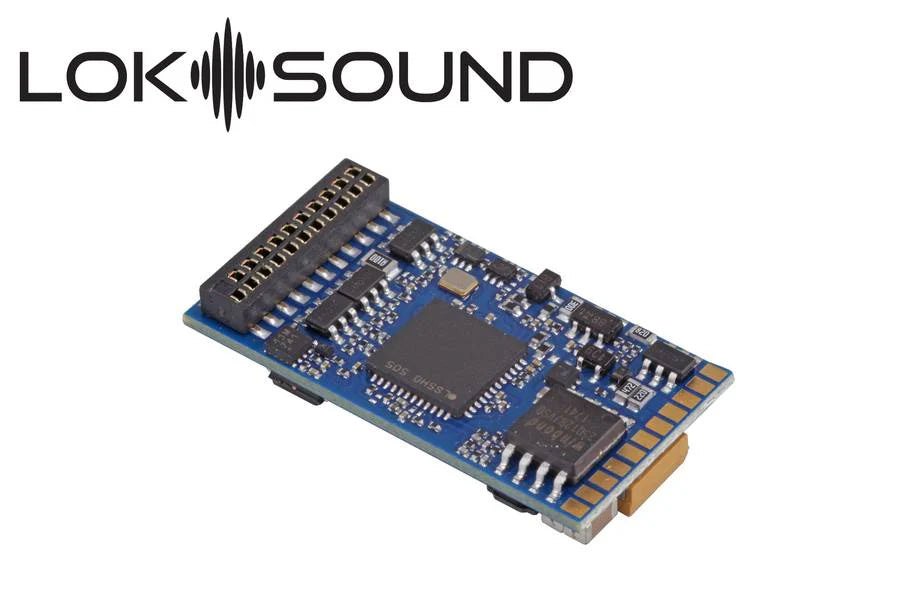

LokSound V5 DCC Sound Chip

Designed specifically for the accurascale Class 66  locomotive with 'Phase 1/2' Engine Configuration, this decoder works seamlessly with the onboard lighting, PowerPack stay-alive system and dual speaker configuration to reproduce the characteristic sound and function of the locomotive at work.

66415, 763, 769 and 779 are Tier 1/2

Common Features:

  • The LokSound 5 decoder works for analogue DC and AC (!) layouts.The LokSound 5 decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity.The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles.We are quite aware that you want your locomotives to be as realistic as possible. Therefore we have packed many function outputs into it.  Subject to the type of interface every LokSound 5 has at least 10 amplified outputs. The decoders with PluX22 or 21MTC interface have an additional 4 outputs for controlling servos or as logic outputs. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers.Motor control of the LokSound 5 has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 decoder supplies up to 1.5A motor current, which is quite sufficient even for older motor types.

Customer Reviews

Based on 10 reviews
90%
(9)
10%
(1)
0%
(0)
0%
(0)
0%
(0)
R
Rob

Good quality sound for a great model.

R
Richard

First Class product!

B
Boycie1946

Makes the right noise!

T
T H.
Low emission Class 66 sound chip

Very good sound especially on idle, no non stop annoying sprirax valve.

J
Joe E.
amazing decoders

the sound files are put together amazingly with all the lights and sound there definitely worth it

G
Graham
Adding Sound to my 66

Very easy to fit and super sound. Adding sound really does add to this superb model. Will upgrade my others when finance permits!!!!!

D
David R.
The sounds of a Shed

Cracking clear crisp sound

A
Anonymous
Class 66 sound decoder

Sounds great,easy fit. A little quiet but waiting for the speaker upgrade. Maybe a cv list for basic changes would be good, as I have no idea how to change the volume.

I
Ian F.
Evening Star⁸

Chip works ok, but the sound needs to be loader. Set too low. Need to have information about CV code and values to change settings.

S
Simon
Good sounds

Still waiting for the 8 ohm ‘thrash speaker before I can use this but my DCC Fitted 66 sounds good.
