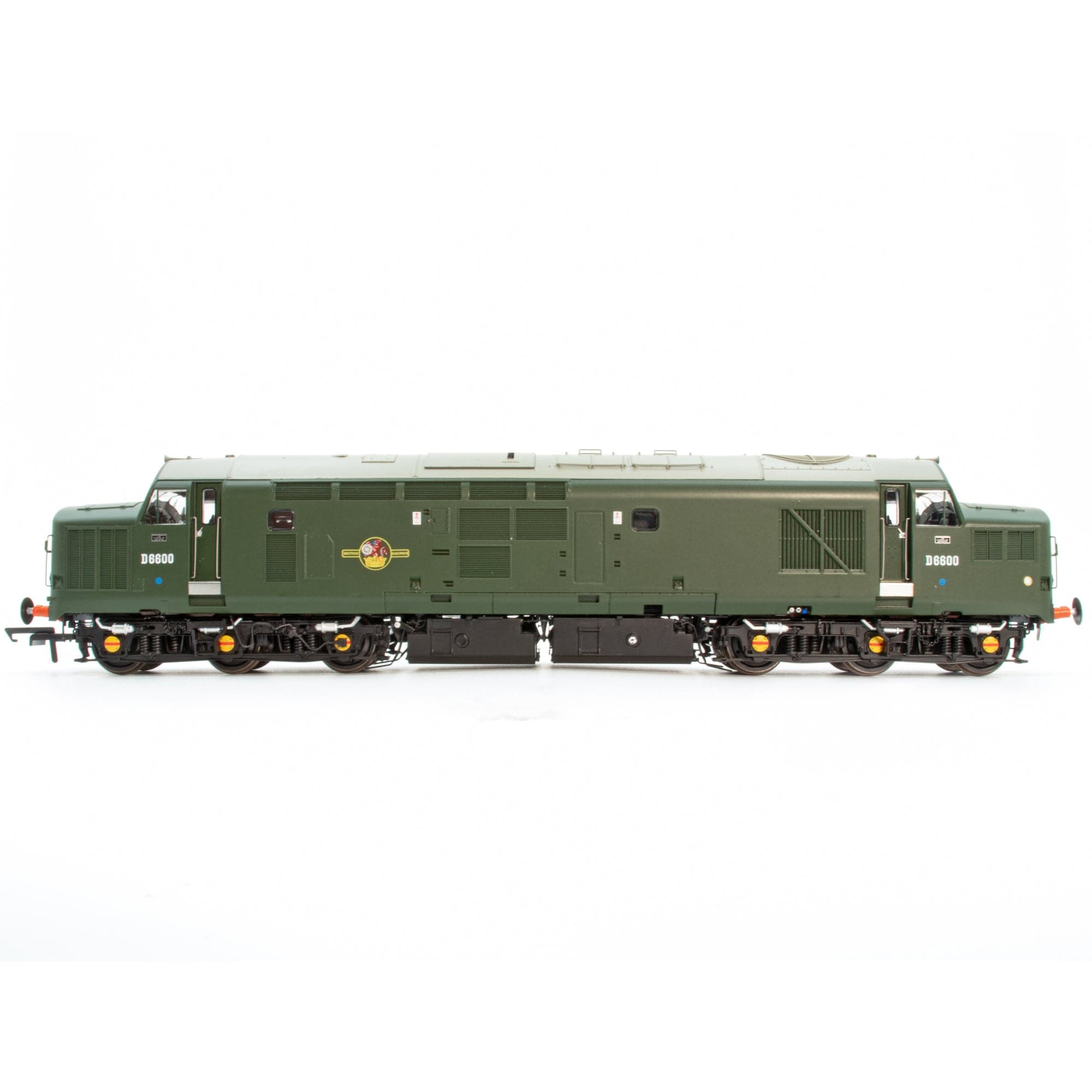

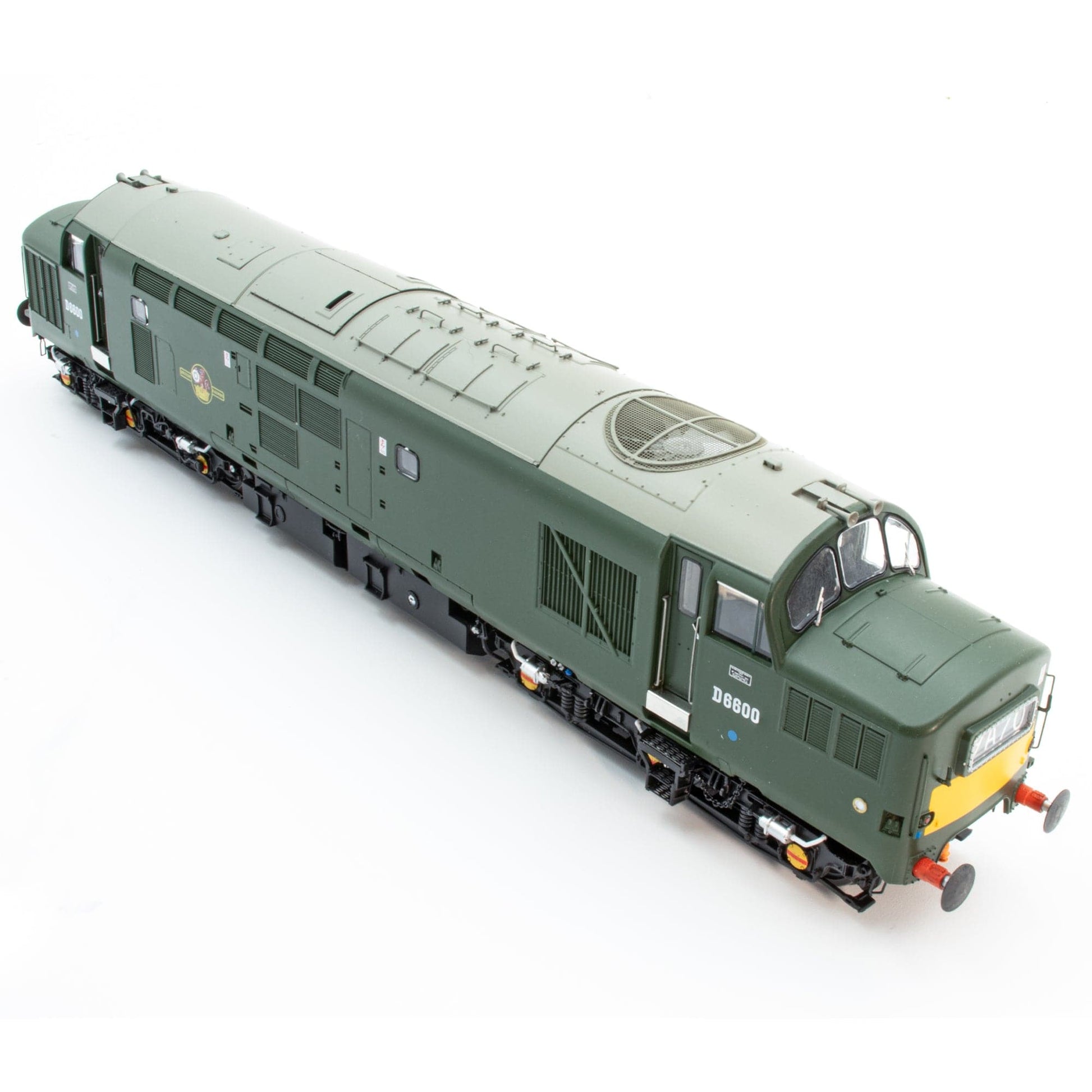

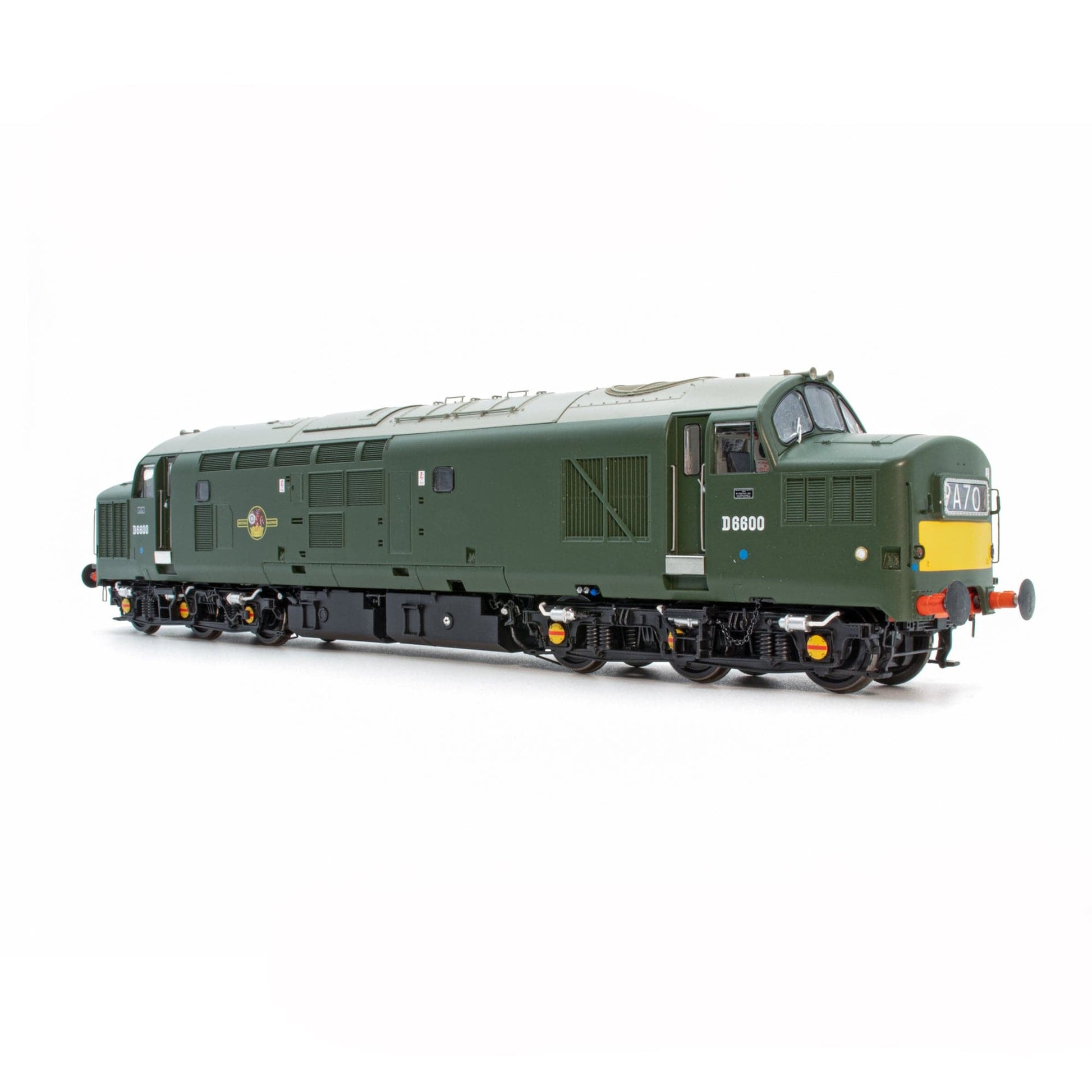

Class 37 - BR Green w/small yellow panel - D6600 - DCC Sound Fitted

Class 37 - BR Green w/small yellow panel - D6600 - DCC Sound Fitted

SKU ACC2618-DCC

This is an Archived product

This item was delivered in a Previous run ( Quarter 1, 2024 ) from this range and is no longer available new from accurascale

Check Shops who may have this item

Explore accurascale Stockists here

Need support for this item?

Do you own this model and need support, warranty assistance, or documentation? Click here

Completed nearly six years after D6700 had left Vulcan Foundary, D6600 was the first of nine English Electric Type 3s to be numbered out of sequence as the fleet outgrew its allocated series and bumped up against the Western Regions D7000 'Hymek' locomotives. Delivered to 86A Cardiff Canton in August 1965 and then to Swansea Landore in 1971, later gaining the number 37300, it spent the first 20 years of its life primarily on freight duties in and around South Wales before eventually moving to Scotland at the start of 1985. It had barely settled in north of the border when it received the call to Crewe Works in the October for refurbishment as one of the Welsh-based Class 37/4s, 37429. D6600 wears its original BR green with small yellow warning panel and features its as-built nose condition with no riveted strenthening plate and WR-style lamp irons only.

Common Features:

  • Highly detailed OO scale model, 1:76.2
  • Heavy die-cast metal chassis
  • Accurate tumbleholme, nose, cab roof and cantrail curves taken from 3D Laser scan and extensive surveys
  • Timeframe specific details, including but not limited to;
  • Bogies (Fabricated and three variations of Cast)
  • Fuel tanks (As built and with later smooth-sided long range fuel tank)
  • Early Class 37/0 features frost grille, boiler filler panel and access steps
  • Early Class 37/0 features illuminated split headcode displays with a selection of different four-character headcodes
  • Class 37/6 have operational WIPAC light clusters and top headlight and numerous different nose slides all including multiple working socket
  • Three styles of buffer: large round Oleo, oval and squared oval
  • Three styles of nose grilles: as built, refurbished ‘split’ and refurbished ‘single piece’
  • Boiler exhaust, and two styles of plated boiler panel
  • With or without bufferbeam skirts
  • With or without cab roof vents and bodyside windows
  • Nose and roof aerials and antennas (where applicable)
  • Three styles of windscreen: standard, centre toughened and all toughened
  • Three styles of cab interior: as built, refurbished and modern DRS locos
  • Four bufferbeam variations with different piping configurations
  • Door kickplates where applicable

Multiple body and nose slides to accurately represent almost every member of the class, including three variations of cantrail grille: early EE (for D6700-D6704), later EE and RSH

Four roof styles: Original double riveted, single riveted, welded and welded with antennas

Separately applied etched metal and high fidelity plastic detail parts, including grab handles, aerials, steps, wipers, nameplates, crests and more.

Etched metal door kickplates (where applicable), ‘frost’ grille (where applicable) & super fine etched metal roof grille

Scale width wire handrails

Turned brass roof-mounted horns on centre headcode examples

Full underbody tank detail with brackets and pipework

Bogies feature separate footsteps, etched footsteps, brake cylinders, speed recorder, end brake rigging and very fine brake chain

Brake blocks on trucks (bogies) in line with wheels (can be moved for EM/P4 gauges)

Numerous other locomotive-specific details yet to be revealed!

RP25-110 profile OO gauge wheels with fine scale ‘drop in’ EM (18.2mm gauge) and P4 (18.83mm gauge) wheels available separately

Accurate high-fidelity miniature snowploughs

Fully sprung metal buffers, extra-fine factory-installed pipework and screw couplings

Correct height mini-tension-lock couplers with NEM socket as well as a fully detailed bufferbeam

Every model includes PowerPack / Backup Power Capacitor Bank for up to ten seconds of power free running, flicker free lighting and continuous sound

  • High Performance traction, to include;
  • High-quality five-pole motor with two flywheels
  • Metal Helical Gear box for maximum performance and slow speed running
  • Gearing arranged so locomotive can achieve a scale top speed of 100 mph (160 km/h)
  • DCC ready with PowerPack Super-capacitor for uninterrupted power and super low speed running
  • All wheel drive and all wheel pickup

Lighting and DCC Specifics

Provided DCC ready [21Pin MTX Socket] or Factory DCC Sound Fitted [ESU LokSound 5]

Every model includes PowerPack / Backup Power Capacitor Bank for up to ten seconds of power free running, flicker free lighting and continuous sound

DCC Sound Versions include;

  • ESU LokSound V5 DCC Chip
  • Customised Dual-Speaker Technology with;
  • Large Accurathrash Bass Speaker
  • Smaller 'iphone' style cube for higher frequencies
  • DCC ready with PowerPack Super-capacitor for uninterrupted power and super low speed running

Fully detailed Lighting Pack, including:

  • Directional lighting on DC and DCC
  • Fully functional Headlights per prototype
  • Engine Bay Lighting (with visible Prime Mover)
  • WIPAC light clusters where appropriate with day and night-time settings
  • Separately switched cab lighting and illuminated, details driver’s console, auto off on movement
  • Switchable red tail lights
