31105 - Network Rail Yellow - DCC Sound Fitted

SKU ACC2849-DCC
Availability:
On Pre Order
Original price $413.00 - Original price $413.00
Original price
$413.00
$413.00 - $413.00
Current price $413.00

Pre Order Item

This item is on Pre Order, with an expected delivery date of Quarter 1, 2025

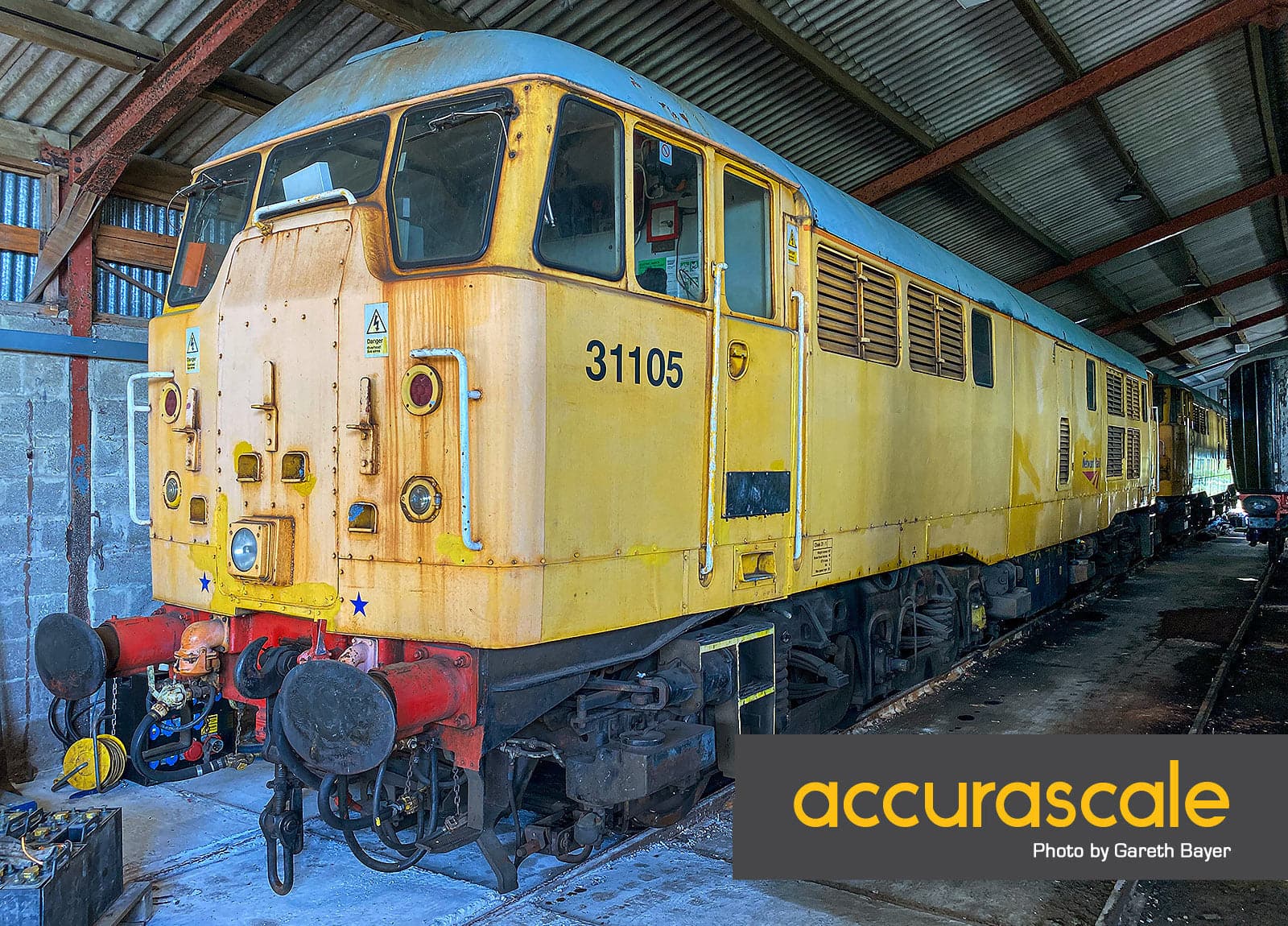

No. 31105 was the third of Network Rail’s Class 31s to return to traffic and the only former disc headcode-fitted locomotive in the fleet, although it could often be found partnered with Howard Johnston’s hired in Fragonset, later BR blue-liveried, ‘skinhead’ No. 31106 on test trains. The former D5523, new to Stratford in March 1959 and withdrawn from Bescot in May 1997, was selected in 2002 for rebirth in NR’s QADD pool along with No. 31107.

While the latter fell by the wayside, No. 31105 was released from Derby in yellow in August 2004, externally almost unchanged from its previous condition, even retaining the extra lamp iron on its plated nose doors. However, by the second half of 2005, Derby had taken the opportunity to remove the cab roof vent cover from the No.1 end cab roof to match the No.2 end that had been rebuilt in early 1984.

While in late 2007, the front ends were further modified with same LED tail lights and the washer jet modifications described above with No. 31285.All good things come to an end though and No. 31105 was withdrawn for the second time in February 2015, leaving just No. 31233 still active for NR.

Still in working order, it was occasionally used as a shunter at the RTC site before being sold into preservation at the Mangapps Railway in Essex in October 2018.

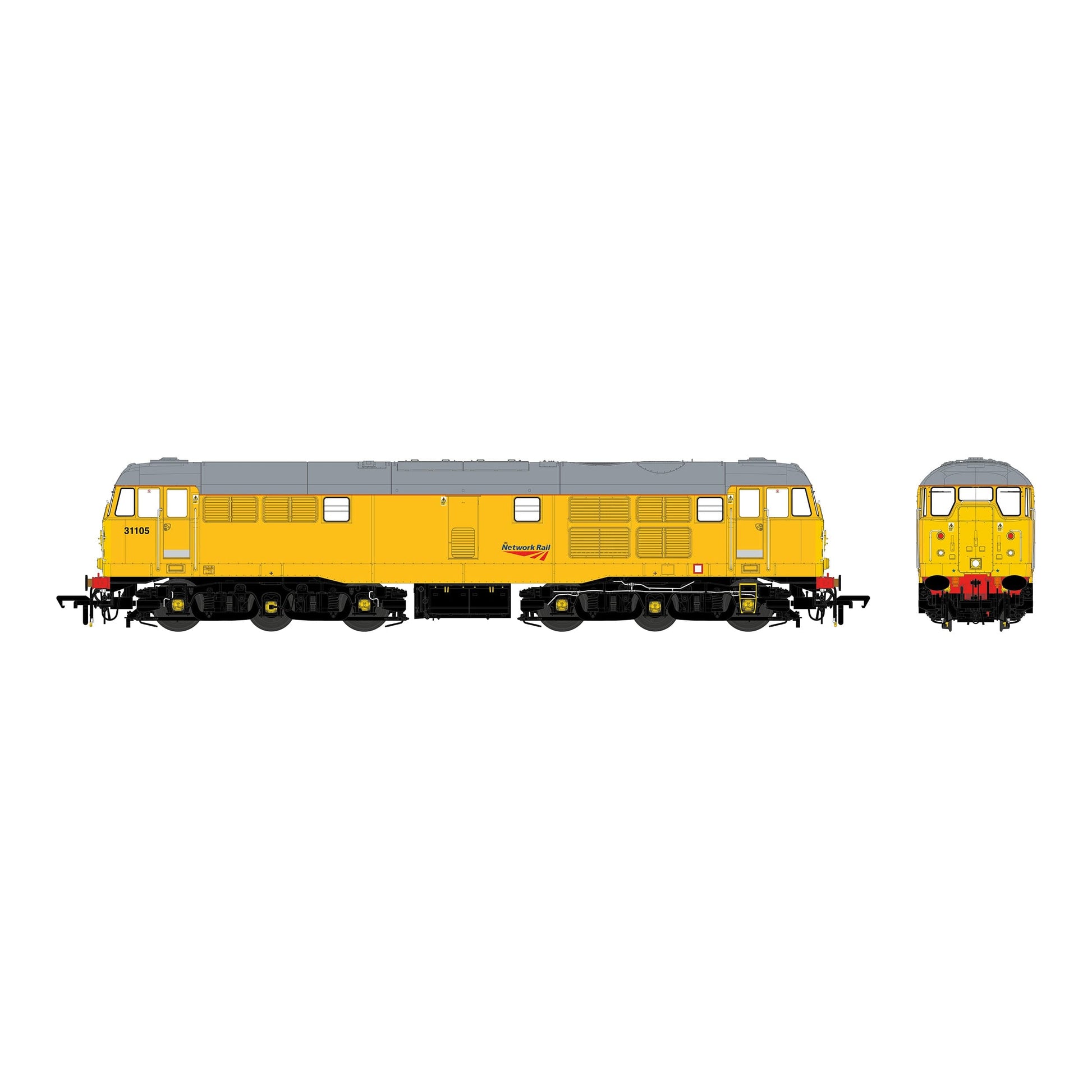

CLASS 31 Common Features

  • Highly-detailed OO gauge model, 1:76.2 scale on 16.5mm track
  • Minimum Radius 438mm (2nd Radius Set-track)
  • Heavy Die-cast metal chassis
  • One truck (bogie) styles with separate footsteps, brake cylinders, speed recorder and end brake rigging
  • RP25-110 profile OO gauge wheels
  • Brake blocks on bogies in line with wheels
  • Scale width wire handrails
  • Etched metal/plastic detail parts, incl. grab handles, steps, wipers, etc.
  • Etched metal roof grille
  • Etched metal pre-painted nameplates, plaques and arrows (if applicable)
  • Accurate high-fidelity miniature snowploughs, chassis fitted
  • Full underbody battery box/air tank detail with pipework
  • Extra cab front details for Network Rail locomotives
  • Fully sprung buffers, multiple pipework variations and screw couplings
  • Kinetic NEM coupler mounts at correct height with mini-tension-lock couplers

High Performance traction features;

  • High quality 5-pole motor with two large flywheels
  • Helical Gear box for maximum performance and slow speed running
  • Gearing arranged so locomotive can achieve a scale top speed of 90 mph (145 km/h)
  • Outer axles on bogies are driven (sprung dummy centre axle) and all wheel pickup

Deluxe Features

  • All models feature a fully working, scale speed roof fan, that will run on DC and DCC., On DCC control, the fan speed is fully programmed to simulate accurate motion
  • All models feature  PowerPack supercapacitor Stay-Alive system for uninterrupted power and flicker free lighting and uninterruptible sound (works on DCC)

Lighting and DCC Specifics

DCC Features

  • DCC ready [21-Pin MTX Socket]
  • Factory-Installed DCC Sound available with ESU LokSound V5 fitted with large speaker and sugarcube style speaker, with large sound capsules for best possible sound (DCC Sound models only)
  • Wheel flange squeal sensor on DCC sound fitted locomotives for automatic flange squeal on sound programme

Fully detailed Lighting Pack features:

  • Directional lighting, DC and DCC
  • Lighting clusters with appropriate day and night-time settings
  • Switchable Red and white marker lights (red can be switched individual lights or both on)
  • Separately switched cab lighting and illuminated, driver’s desk with auto/off on movement
