Accurathrash Class 37 Loksound ‘Original’ DCC Sound Decoder

SKU ACC2246
Original price $168.00 - Original price $168.00
Original price
$168.00
$168.00 - $168.00
Current price $168.00
Availability:
in stock, ready to be shipped

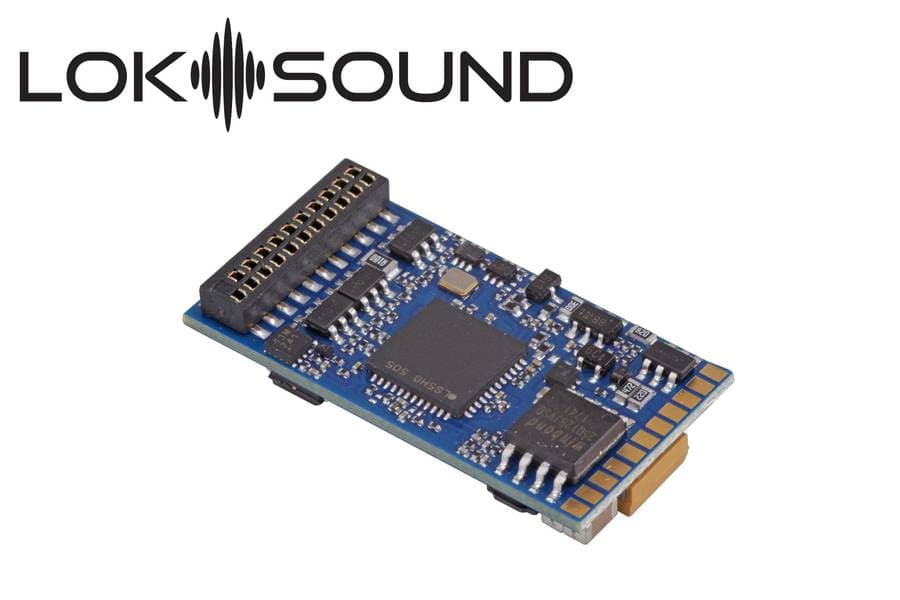

LokSound V5 DCC Sound Chip

Designed specifically for the accurascale Class 37  locomotive with ‘Original’  Engine Configuration, this decoder works seamlessly with the onboard lighting, PowerPack stay-alive system and dual speaker configuration to reproduce the characteristic sound and function of the locomotive at work.

This chip is suitable for all 37/0, 37/1, 37/2 37/3 Variations as they ran before the engines were refurbished. For chips suitable for all other Class 37, see here

Common Features:

  • The LokSound 5 decoder works for analogue DC and AC (!) layouts.The LokSound 5 decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity.The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles.We are quite aware that you want your locomotives to be as realistic as possible. Therefore we have packed many function outputs into it.  Subject to the type of interface every LokSound 5 has at least 10 amplified outputs. The decoders with PluX22 or 21MTC interface have an additional 4 outputs for controlling servos or as logic outputs. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers.Motor control of the LokSound 5 has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 decoder supplies up to 1.5A motor current, which is quite sufficient even for older motor types.

Customer Reviews

Based on 84 reviews
98%
(82)
1%
(1)
1%
(1)
0%
(0)
0%
(0)
J
Jacob B.
Sound upgraded

Great to be able to add sound to another 37.

D
David

Easily fitted into my Class 37 and it sounds great. I would have liked the function list included though to help me set up the volume etc.

J
Jack

Wonderful selection of sounds and I can now utilise the vast array of features within the model, can’t fault it one bit… well done accurascale

S
Stuart G.
Best class 37 sound I have so far.

Easily installed and easy to use this has to be my best sound class 37 so far looking forward to more class 37s and other sound locos from you.

G
Geoffrey W.
Class 37sound decoder

I have tested it on my decoder tester sounds very good, have yet to fit it into loco with Accurathrash speaker.
Very good value for money

B
Brian P.
Sound is good.

This brings the locomotive to life.Probably the nearest sound made by these locos when new. Sounds are amazing but a bit loud for me ,but adjustment of c/vs make a model to be totally satisfied with.
Also when used in Accurascale model the lighting options are brilliant.
I need them to do a class 45 now?

a
andrew r.
Class 37 decoder sound

Nice sounds though even better with accureathrash speaker

M
Mark T.
Superb

A superb additional to an already quality model. So easy to fit, and gives the loco the sound that shows up its nickname: Growler!

N
Nicholas F.
Brilliant

Wow brilliant sound reproduction

N
Neil s.
37/0 sound decoder

Another great sound file on decoder from Accurascale!!!
Sounds great in my weathered up accurascale large logo 37043…
Many thanks once again….
