7812 – ‘Erlestoke Manor ' BR Manor Class

SKU ACC2500-7812
Sold out
Original price $258.00 - Original price $394.00
Original price
$258.00
$258.00 - $394.00
Current price $258.00
Availability:
Sold Out
Availability:
Sold Out
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
DCC: DCC Ready

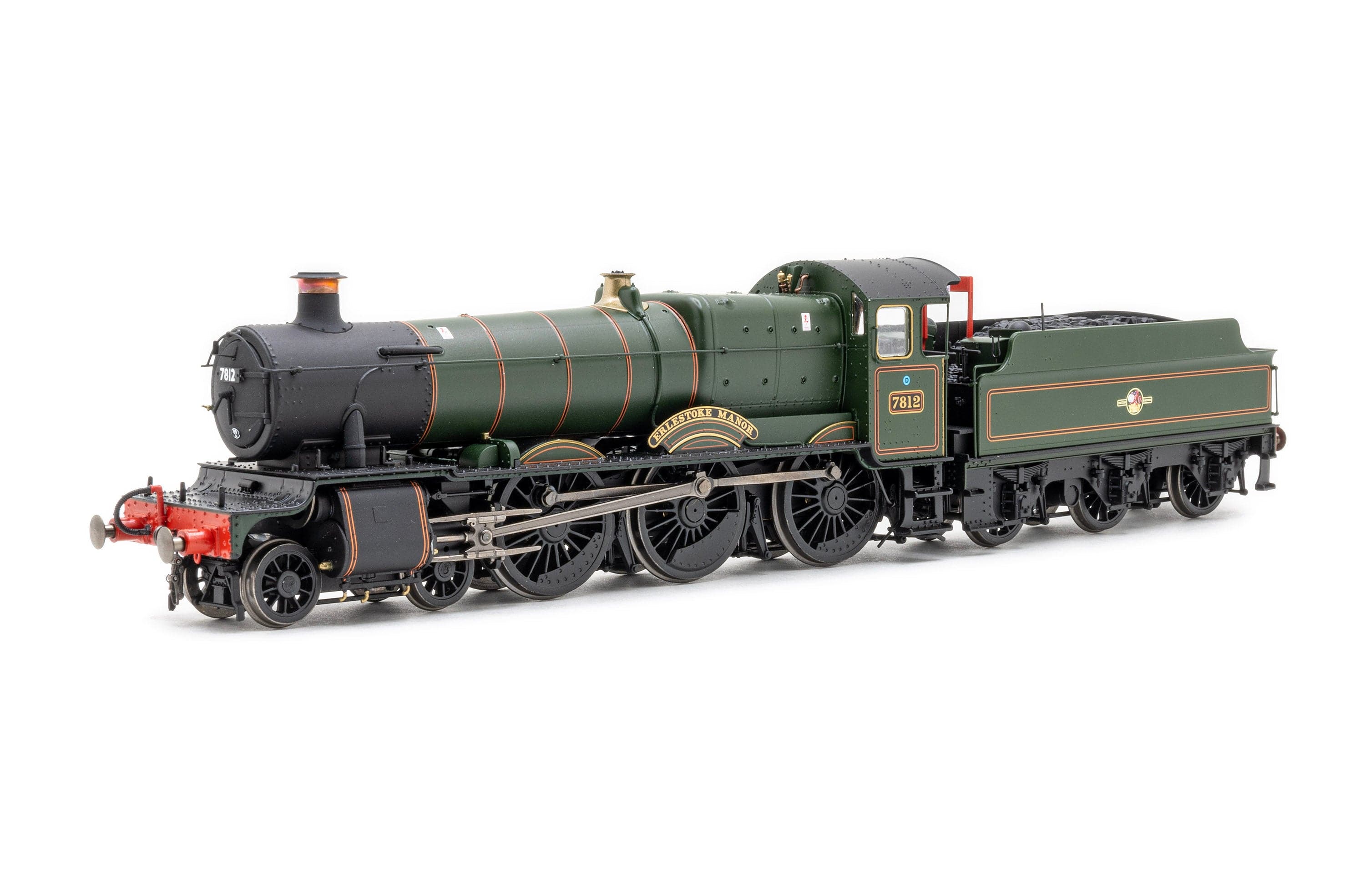

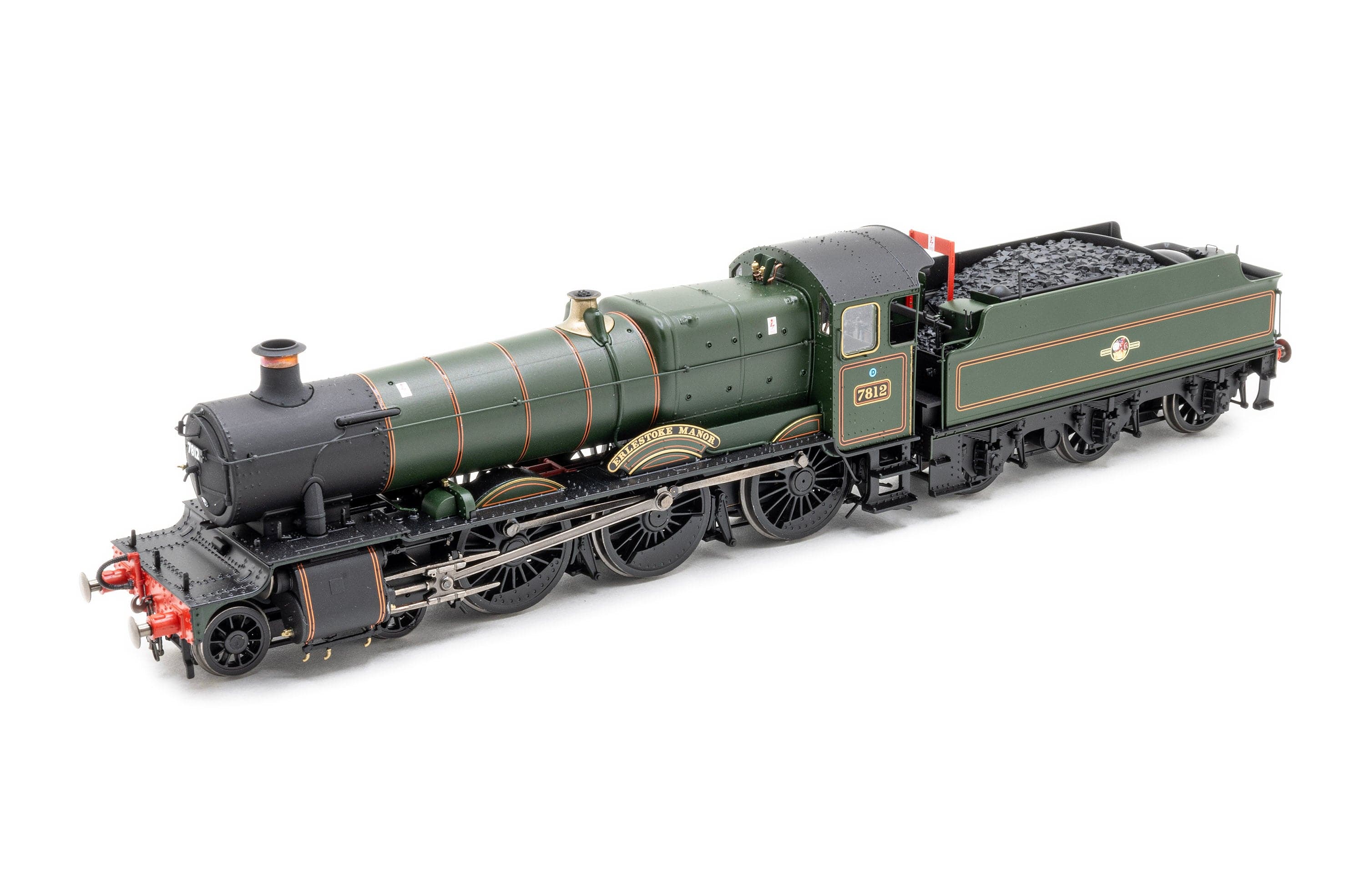

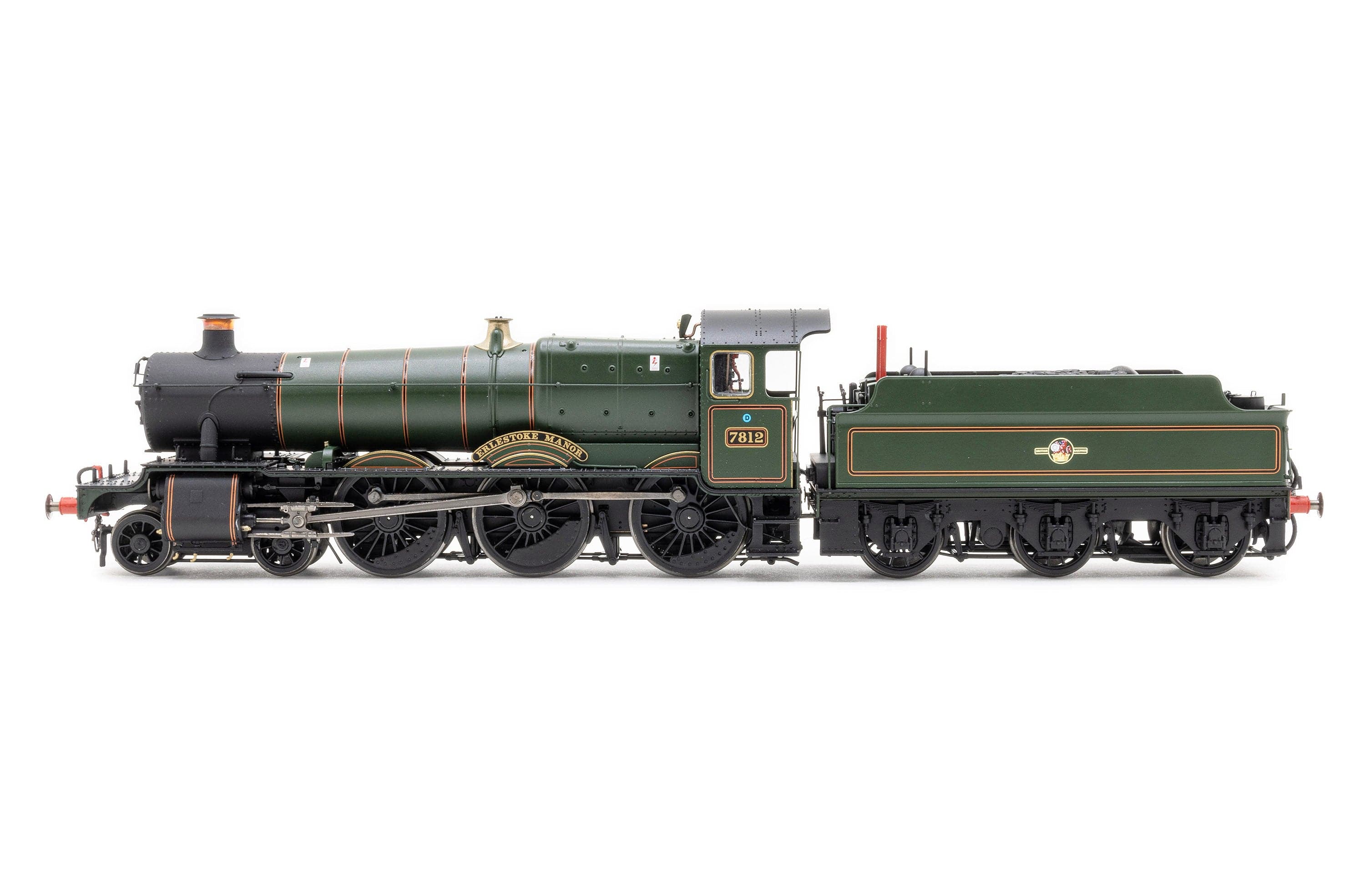

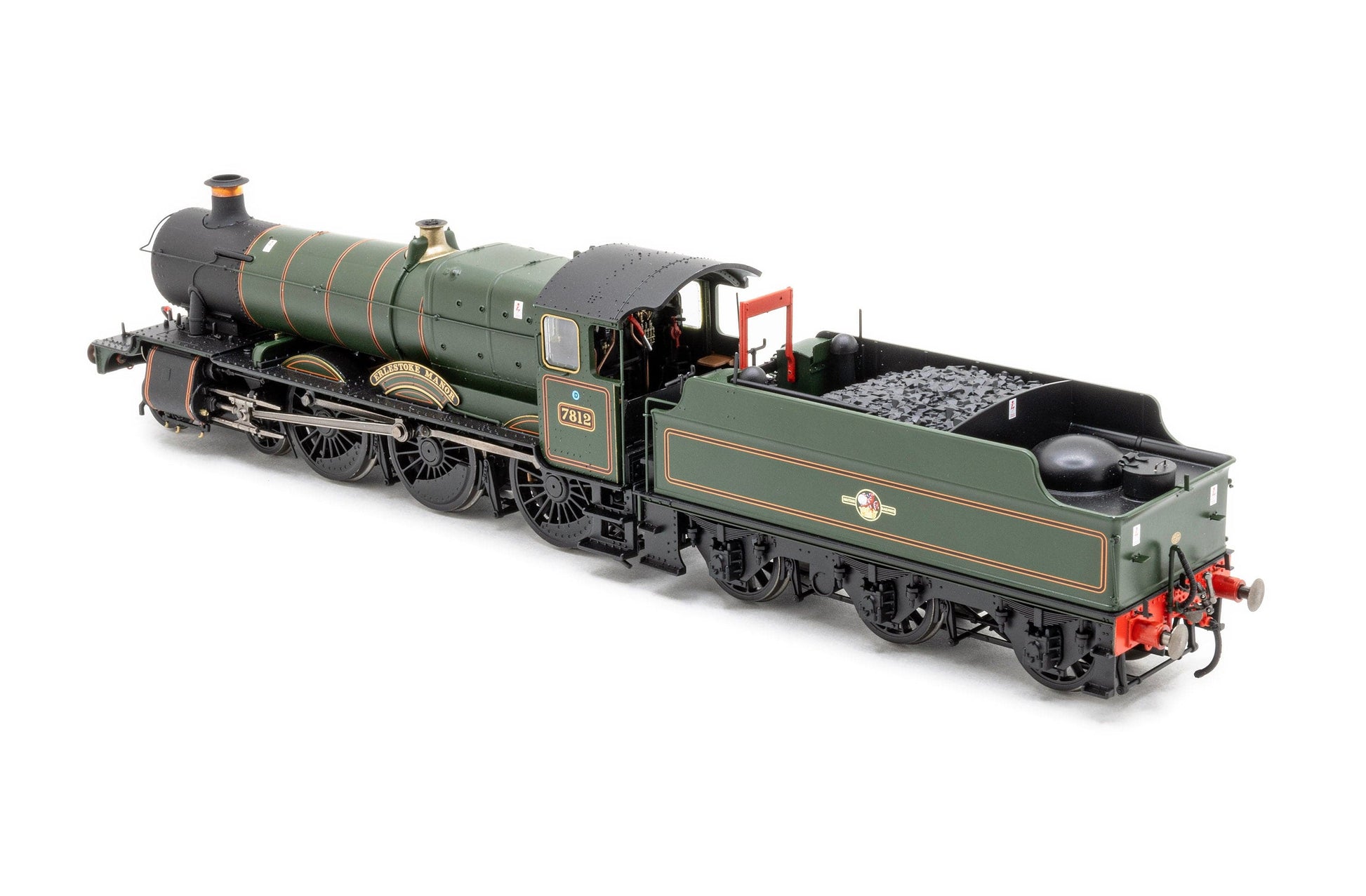

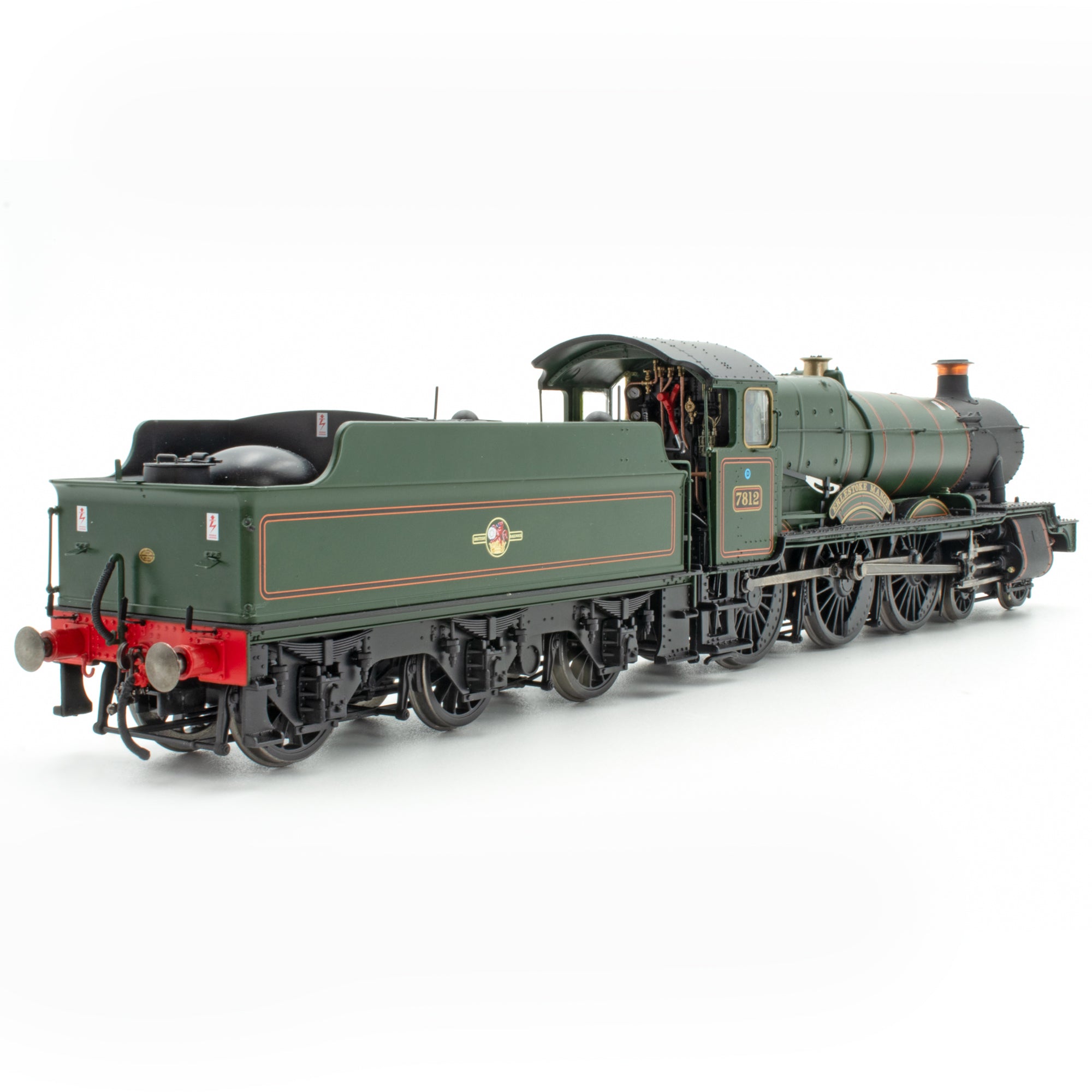

7812 – ‘Erlestoke Manor '

  • BR Lined Green with Late Crest
  • Redraughted Chimney
  • Flush Tender Body
  • Narrow hornplates
  • Etched metal "Cambrian Coast Express" and "Pembroke Coast Express" headboards

Please note photos depict the decorated sample and may not fully represent the finished item.

Common Features:

  • Highly-detailed OO gauge model, 1:76.2 scale on 16.5mm track
  • Based on 3D scan of 7808 Cookham Manor and full works drawings provided by Great Western Society, Didcot
  • Surveys undertaken with assistance of Erlestoke Manor Fund, Dinmore Manor Loco Ltd and Tyseley Locomotive Works
  • Smokebox and chimney correctly represents as-built GWR condition or post-1952 BR redraughting
  • Fully-detailed cab interior with many separate parts
  • Die-cast metal chassis, running plate and body
  • Scale width wire handrails
  • Etched metal/plastic and lost wax detail parts, incl. grab handles, steps, drain cocks, etc
  • Etched metal pre-painted name and numberplates
  • High-fidelity dummy screw couplings
  • Fully sprung metal buffers and factory-installed pipework
  • Tapered or straight buffer housings where applicable
  • Brake blocks in line with wheels
  • Front mini-tension lock coupler can be replaced by accurate front pony truck moulding

Tender Details:

  • Churchward 3,500 gal tender with numerous variations including riveted and flush sides, narrow or wide hornplates, three different styles of spring hanger and underframe-mounted water scoop
  • Fully sprung metal buffers, factory-installed pipework and high fidelity dummy screw couplings
  • Early tapered, tapered or straight buffer housings where applicable
  • Optional overhead warning plate bracket on late-BR examples
  • Kinetic NEM coupler mounts on tender at correct height with mini-tension-lock couplers
  • DCC decoder socket in tender
  • Choice of lift out sections: empty or simulated ‘coal’ load

DCC / Electronic Features:

  • Very high-quality 3-pole motor with flywheel, low starting voltage and smooth power delivery
  • DCC ready or factory-installed DCC Sound options
  • DCC Sound locomotives have speaker mounted in smokebox and speaker in tender
  • PowerPack capacitor bank for uninterrupted power and sound
  • Flickering firebox light (synchronised with sound on DCC installed models)
  • Electrical pickup from all tender and locomotive driving wheels

Traction Features:

  • Minimum Radius 438mm (2nd Radius Set-track)
  • Die-cast metal chassis, running plate and body with sprung centre driving axle
  • Metal Helical Gear box for maximum performance and slow speed running
  • Gearing arranged so locomotive can achieve a scale top speed of 90 mph (145 km/h)
  • RP25-110 profile OO gauge wheels

Customer Reviews

Based on 70 reviews
96%
(67)
4%
(3)
0%
(0)
0%
(0)
0%
(0)
P
Phil.
GWR Manor

Had a issue with the manor it would get suck in reverse, Accurascale replaced it with a new one, quickly and efficiently, sadly left my decoder in the one I sent back , thankfully Accurascale sent me a replacement, it took a little while but all sorted now, really appreciate all there help. As for the loco it's self, at the moment I'm thinking about getting another one, need I say more . Smooth runner, stunning detail.

P
Phil.
GWR Manor

Had a issue with the manor it would get suck in reverse, Accurascale replaced it with a new one, quickly and efficiently, sadly left my decoder in the one I sent back , thankfully Accurascale sent me a replacement, it took a little while but all sorted now, really appreciate all there help. As for the loco it's self, at the moment I'm thinking about getting another one, need I say more .

C
CATHERINE R.
!!

Looks ok, ran ok, chimney fell off when we opened the packing, didn't want it so flogged it! At least the wheels didn't wobble like all the other manufacturers over priced models.

G
GC
A Tale Of Two Manors

I usually buy sound fitted models from Accurascale but on this occasion I purchased the locomotive and sound decoder as separate items. The installation of the sound decoder was straightforward and I proceeded to 'run in' the model. Running silently there was quite a significant 'gear' noise as the loco initially moved forward. When moving in reverse the loco 'locked up' after moving a short distance. At the second attempt of reverse running it again locked up. I contacted Accurascale and the loco was returned. I felt the locking was a gear issue rather than a side rod issue. I was swiftly notified that a replacement locomotive was being sent. There seemed to be hiccup in the system as a replacement wasn't forthcoming. I left it for a couple of weeks but nothing appeared so I contacted Accurascale again. Whatever had gone wrong was swiftly rectified and a replacement arrived. The second loco is a lovely quiet and smooth runner in both directions.
Duly run in and working nicely I turned to the sound. The loco isn't the loudest I've ever heard. I knew the warranty would be void but I decided to replace the tender speaker. Looking inside, I'm wondering if the original intention was to put two sugarcube speakers in the tender? The speaker housing certainly looks that way. Anyway, the standard tender speaker is out and a bass enhanced replacement lives there now. It's still not as loud as I would choose, but so be it.
Accurascale driver & fireman now crew it and real coal is in the tender. It is certainly a beautifully detailed model and in that respect is faultless (to me).. it runs very smoothly and 'looks the part'.

P
Patrick B.
Fab. runner

I have had this for a few months now and can confirm it runs faultlessly.
It was a bit tight for 2 circuits of radius 2 out of the box and then smooth from then on.
The detail and finish is superb and is as good or better than models I have purchased at twice the price.
I look forward to more larger steam engines from you in the future.

S
Sebastian W.

Excellent in every way. The included headboards really are the icing on the cake. Well done Accurascale!

S
Steve P.
Unbeatable

Everything about this model sings quality. From the fine moulding to the pin sharp decoration, its simply sublime. Easily the best quality steam era model I have owned

R
Richard

I don’t model steam normally although sometimes rule 1 has to come into play on a layout.

A
Alan G.
7812

Loverly model, up to the high standard to be expected from accurascale.

A
Anonymous
Excellent model

Very smooth running locomotive.
